Grace Fabrication Plates

History of "The Grace Plates"

The Grace Plate – like most inventions, was brought about by necessity. In our central fabrication, we used the industry's standard 4-hole square plate that was available, but you had to make sure the plate was exactly square with the socket, before lamination. We had the idea, that if the plate was round, we could align the plate after the socket was fabricated, by drilling the 4-holes as a final step, when you could see inside the socket.

Therefore, the Grace Plate was created. Since then, thousands of Grace Plates have been used in products across the world. The name “Grace Plate” has become synonymous with practically all 4-hole plates, but there is only one original. The actual name “Grace” comes from our family name and Grace Prosthetic Fabrication, Inc. The Grace Plate has evolved into over a dozen different variations for different applications.

Grace Plates - 225lb Weight Limit

1210 Original Grace Plate

Part #1210 * Torque 12nm / 9ft per lb * Weight Limit 225lbs Click "Go to Link" for 1210 Fabrication instructions

1934 Spacer Plate

Part #1934

1210-BD Grace Lock

Part #1210-BD * Torque 12nm / 9ft per lb * Weight Limit 225lbs Click "Go to Link for 1210-FL / 1210-FD Fabrication instructions

1210-FD Fabrication Dummy

Part #1210-FD * Torque 12nm / 9ft per lb * Weight Limit 225lbs Click "Go to Link" for 1210-FL / 1210-FD Fabrication instructions

1210-M Modified Grace Plate

Part #1210-M * Torque 12nm / 9ft per lb * Weight Limit 225lbs

1210-P Pediatric Plate

Part #1210-P * Torque 12nm / 9ft per lb * Weight Limit 225lbs

OA09 Offset Adapter Plate

Part #OA09 * 9mm * Torque 12nm / 9ft per lb * Weight Limit 225lbs

OA13 Offset Adapter Plate

Part #OA13 *13mm *Torque 12nm / 9ft per lb * Weight Limit 225lbs

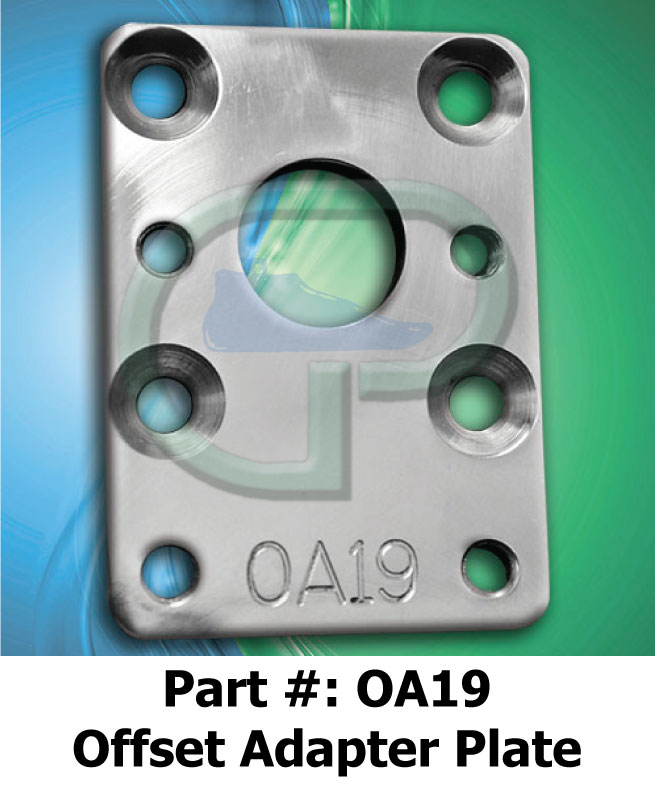

OA19 Offset Adapter Plate

Part #OA19 * 19mm * Torque 12nm / 9ft per lb * Weight Limit 225lbs

OA25 Offset Adapter Plate

Part #OA25 *25mm *Torque 12nm / 9ft per lb * Weight Limit 225lbs

OA37 Offset Adapter Plate

Part #OA37 * 37mm * Torque 12nm / 9ft per lb * Weight Limit 225lbs

206550 Square Adapter Plate

Part #206550 * Torque 12nm / 9ft per lb * Weight Limit 225lbs

206551 Modified Square Adapter Plate

Part #206551 * Torque 12nm / 9ft per lb * Weight Limit 225lbs

Fun-1 Large Funnel

Part #Fun-1

Grace Plates - 300lb Weight Limit

1210-D Domed Grace Plate

Part #1210-D * Torque 12nm / 9ft per lb * Weight Limit 300lbs

1210-L Lanyard Strap Kit

Part #1210-L Includes: * 2 straps * Lanyard plate * 1934 Spacer plate * Screws * 2 Bolts * Torque 12nm / 9ft per lb * Weight Limit 300lbs

1210-LP Lanyard Puck

Lanyard Puck only * Torque 12nm / 9ft per lb * Weight Limit 300lbs

1210-LS Lanyard Strap

Part #1210-LS Includes: * 1 Strap * 1 Bolt

1210-S Tie-In Single Bore w/Notches

Part #1210-S * Torque 12nm / 9ft per lb * Weight Limit 300lbs Click "Go to Link for 1210-S/1210-S1 Fabrication instructions

1210-SB Tie-in Single Bore w/o Notch

Part #1210-SB * Torque 12nm / 9ft per lb * Weight Limit 300lbs

1210-S1 Tie-in Double Bore w/ Notch

Part #1210-S1 * Torque 12nm / 9ft per lb * Weight Limit 300lbs Click "Go to Link for 1210-S/1210-S1 Fabrication instructions

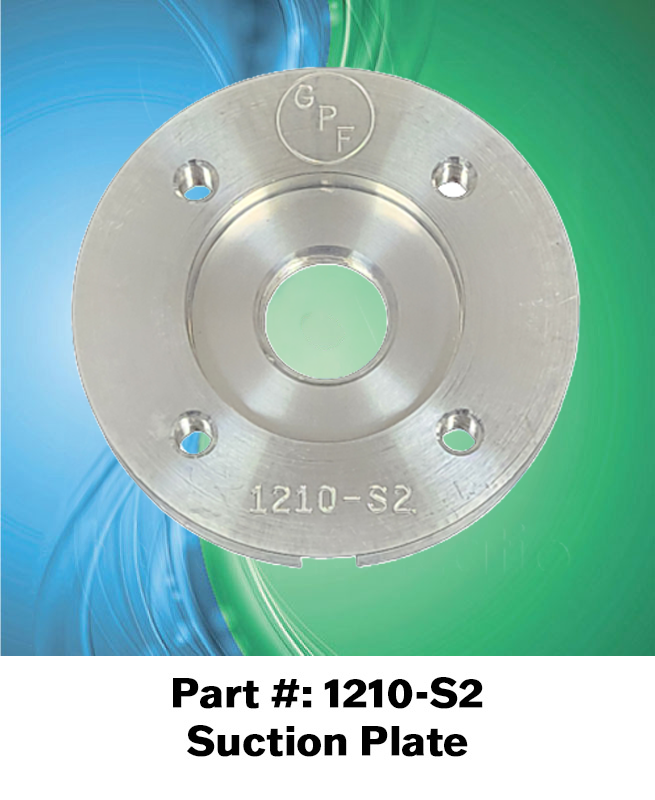

1210-S2 Suction Plate

Part #1210-S2 * Torque 12nm / 9ft per lb * Weight Limit 300lbs * Pairs with 1210-S2V Suction Valve- Sold separately

1210-S2V Suction Plate Valve

Part #1210-S2V * Torque 12nm / 9ft per lb * Weight Limit 300lbs *Pairs with 1210-S2 Suction Plate- Sold separately

1210-S2/S2V Suction Plate & Valve

Part# 1210-S2 & 1210-S2V * Combo sold together * Torque 12nm / 9ft per lb * Weight Limit 300lbs
